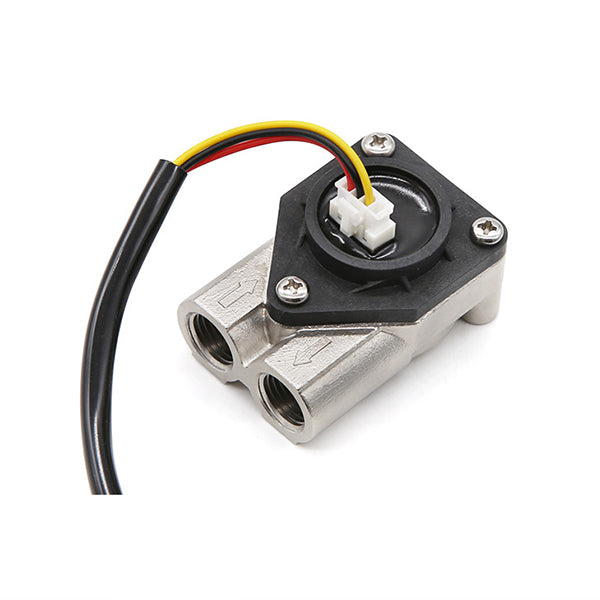

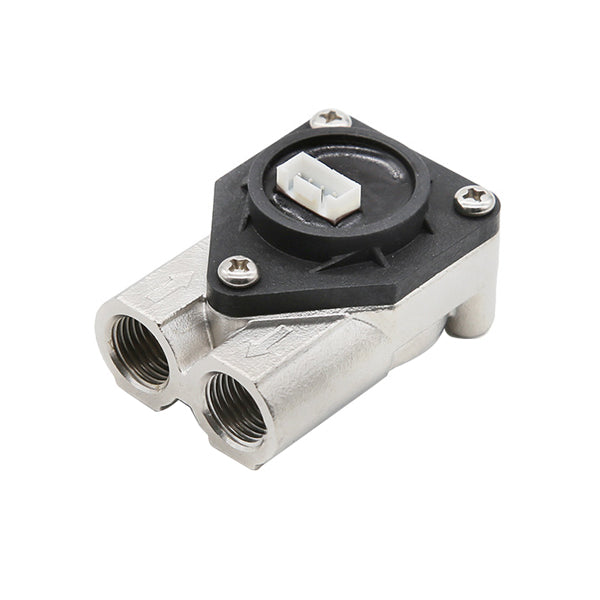

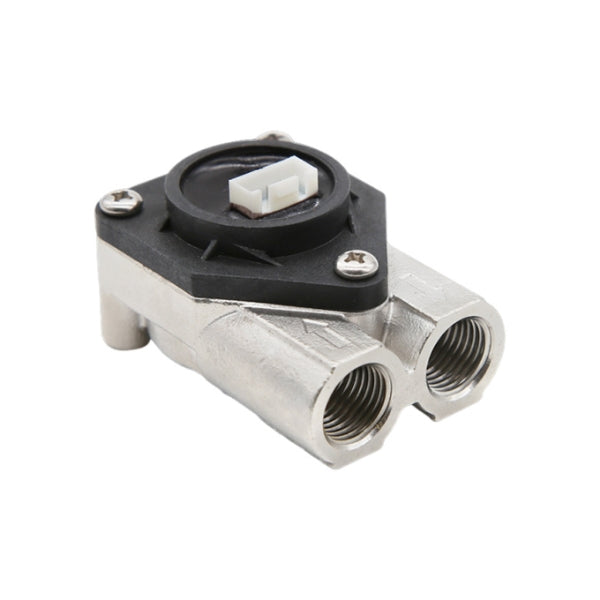

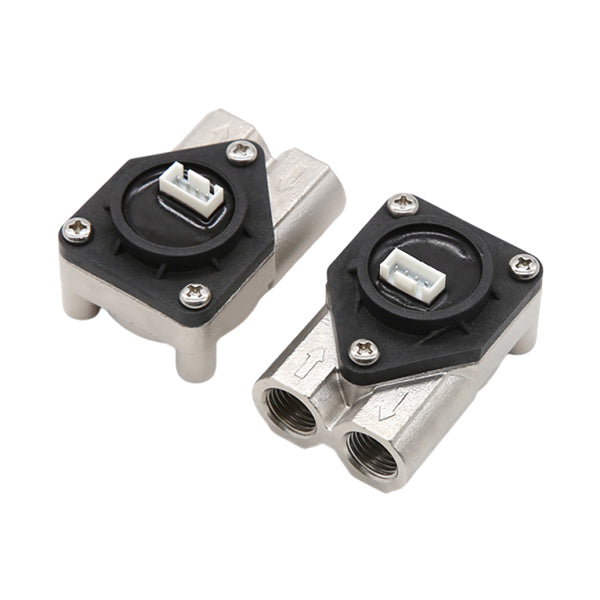

SUS304 Stainless Steel Water Flow Sensor, 0.1-10 L/min Low Flow Rate Hall Effect Flowmeter for Residential Water Purifiers

SUS304 Stainless Steel Water Flow Sensor, 0.1-10 L/min Low Flow Rate Hall Effect Flowmeter for Residential Water Purifiers

CUCIR-ZJKFJ-S1

Measuring Range
$119.00
$119.00
Sale Sold out
🚚 Free Shipping 🕒 Delivery date: 7-12 Days 🔄 30-Day Returns

● 0.1~1 L/min, 0.3-5 L/min, 0.3~10 L/min
● DC 3.5–24 V
● Pulse output
● 304 stainless steel
View full details

Overview

Engineered for high-accuracy residential water monitoring, this sensor delivers exceptional performance across a versatile flow range of 0.1 to 10 L/min. Built with a premium SUS304 stainless steel body and a standard G1/4'' thread, it provides a reliable pulse signal output proportional to the flow rate. It is the ideal solution for real-time data tracking in smart home ecosystems and high-end water purification systems, ensuring both long-term reliability and uncompromising water safety.

Feature

Ultra-Sensitive Micro-Flow Detection: Optimized for low-flow startup, accurately covering everything from subtle filtration monitoring to daily household usage.

IoT & Smart Home Ready: Outputs a standard pulse signal that integrates seamlessly with smart controllers, allowing for real-time water consumption tracking and leakage alerts.

Food-Grade SUS304 Construction: The valve body is forged from high-quality 304 stainless steel, offering superior corrosion resistance and ensuring your water remains pure and safe from secondary contamination.

Wide Voltage Compatibility (DC 3.5–24V): Designed for flexibility, the wide operating voltage range simplifies system design and fits various power environments.

Industrial-Grade Durability: Featuring high insulation resistance and excellent thermal tolerance, this sensor is built to withstand demanding residential environments with minimal maintenance.

TECHNICAL SPECIFICATIONS

Inlet Inner Diameter Range
1.2mm
2.5mm
3mm
Flow Range
0.1~1 L/min
0.3~5 L/min
3~10 L/min
Pulse Frequency
F = 30 × Q
F = 12.2 × Q
F = 8.5 × Q
Number of Pulses for 1 Liter of Water
1800
732
510
Interface Diameter
G1/4"
Output Signal
Pulse output
Voltage Range
DC 3.5–24 V
Water Pressure Resistance
≤ 1.2 MPa
Suitable Media
Pure water
Valve Body Material
304 stainless steel
Media Temperature
≤ 100 °C
Insulation Resistance
> 100 MΩ
Output Pulse High Level
> DC 4.7 V (input voltage DC 5 V)
Output Pulse Low Level
< DC 0.5 V (input voltage DC 5 V)

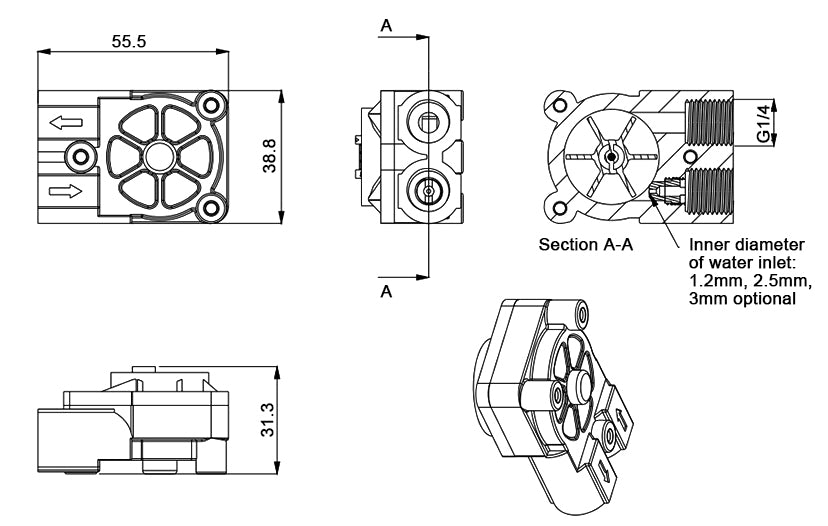

Dimension (unit: mm)

Dimension Drawing

Detail

Dimension Drawing

Product FAQ

What are the advantages of 304 stainless steel in residential water flow sensors? +
The 304 stainless steel valve body provides superior corrosion and oxidation resistance, ensuring the sensor remains rust-free even during prolonged exposure to domestic tap water. Its high structural integrity offers excellent pressure tolerance (up to 1.2 MPa) and long-term stability, preventing heavy metal contamination and ensuring the safety of the household water supply.
What type of signal does the residential water flow sensor output? +
This sensor outputs a precise NPN pulse signal (Square Wave). The pulse frequency is directly proportional to the real-time flow velocity. This standardized output allows for seamless integration with smart home controllers, PLC systems, or digital flow meters to achieve accurate water consumption monitoring and leak detection.
Is this flow sensor suitable for daily residential water applications? +
Absolutely. The CUCIR residential series is specifically engineered for household environments. It features a low-pressure drop design that does not interfere with normal tap water pressure. It is ideal for purified water systems, water heaters, and smart irrigation, providing stable and reliable measurements across a wide temperature range (up to 100°C).
