M18 Capacitive Sensor Series | 5-10mm Adjustable Range | Universal NPN/PNP Output | Pro-Grade Industrial Automation
M18 Capacitive Sensor Series | 5-10mm Adjustable Range | Universal NPN/PNP Output | Pro-Grade Industrial Automation
Precision M18 Threaded Body
Flexible Output Configuration
High-Luminance Red LED Indicator
Superior Repeatable Accuracy
Couldn't load pickup availability
Share
Overview

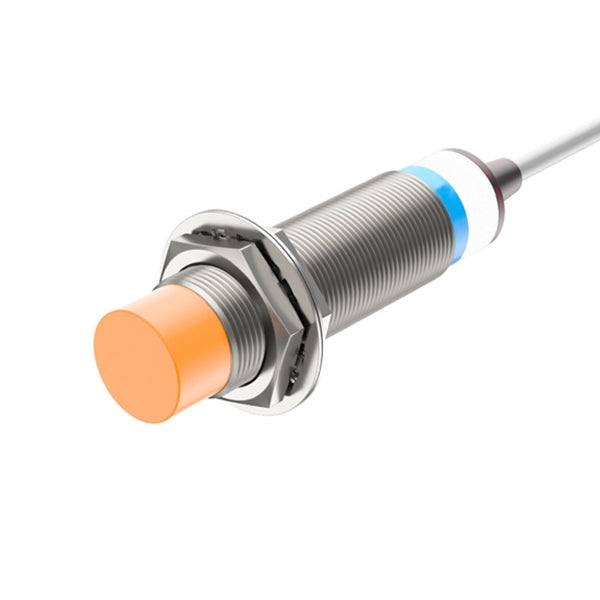

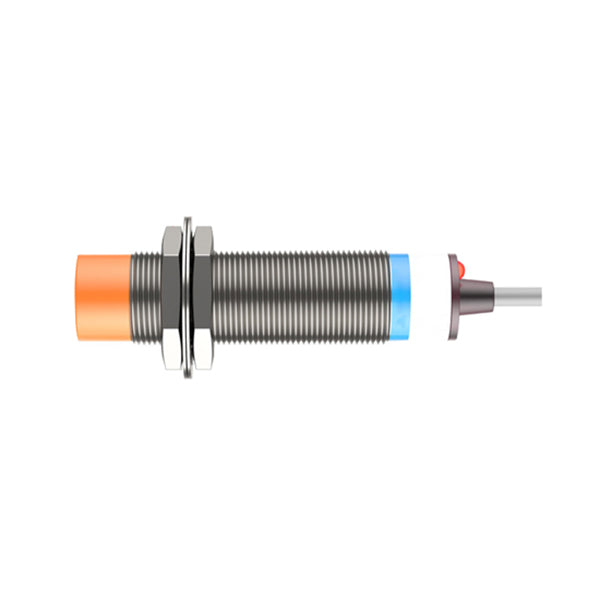

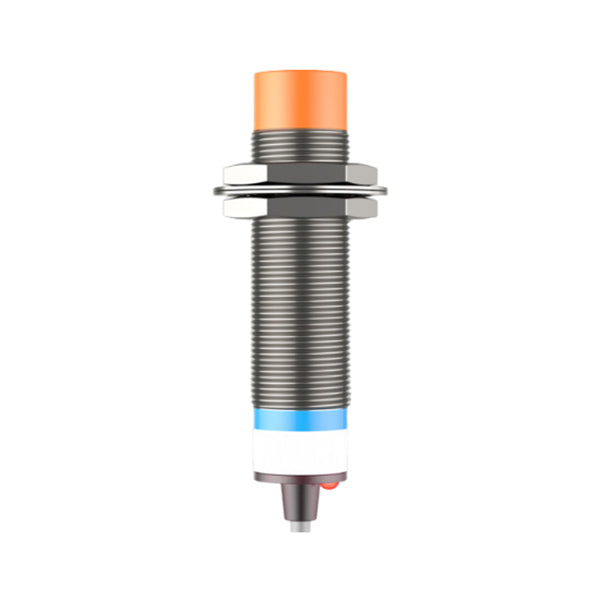

The M18 Capacitive Proximity Sensor is a versatile industrial solution designed for non-contact detection of both metallic and non-metallic materials. Whether it’s liquids, plastics, powders, or grains, this sensor ensures reliable performance. Featuring a 10mm sensing range and robust anti-interference technology, it operates stably in harsh environments from -30°C to +65°C.
Feature
High-Speed Intelligence: Integrated smart sensing chip ensures rapid response times and precision detection for both NO and NC logic.
Industrial Durability: Built with a premium nickel-plated brass housing; its M18 threaded design offers superior impact resistance and an extended service life.
Precision Sensitivity: Optimized for the 10mm range, the sensor maintains high repeatability even in complex industrial automation setups.
Real-Time Feedback: Equipped with a vivid LED indicator for instant operational status—on when triggered in NO mode, providing clear visual confirmation on the factory floor.
| Technical Specifications | |
|---|---|
| Product Series | M18 Capacitive Type |
| Installation | Unshielded (Non-flush) |
| Sensing Distance | 10mm ±10% (Adjustable) |
| Setting Distance | 0 – 8mm |
| Sensing Object | Any dielectric substance (Metal, Liquid, Plastic, Powder) |
| Standard Target | SPCC Iron 50×50×1mm |
| Operating Voltage | DC 12-24V (Ripple p-p <10%) |
| Output Current | ≤ 300mA |
| Current Consumption | ≤ 13mA |
| Response Frequency | DC |
| Output Type | NPN/PNP (NO/NC ） |
| Indicator | Red LED (Status Confirmation) |
| Circuit Protection | Reversal Connection, Surge Absorption, Short-Circuit |
| Housing Material | Nickel-Plated Brass |
| Sensing Surface | High-Strength ABS |
| Protection Class | IP67 (Water/Dust/Oil Resistant) |
| Operating Temp | -30°C to +65°C (Non-freezing) |
| Connection | 1.2m Pre-wired Industrial Cable |
