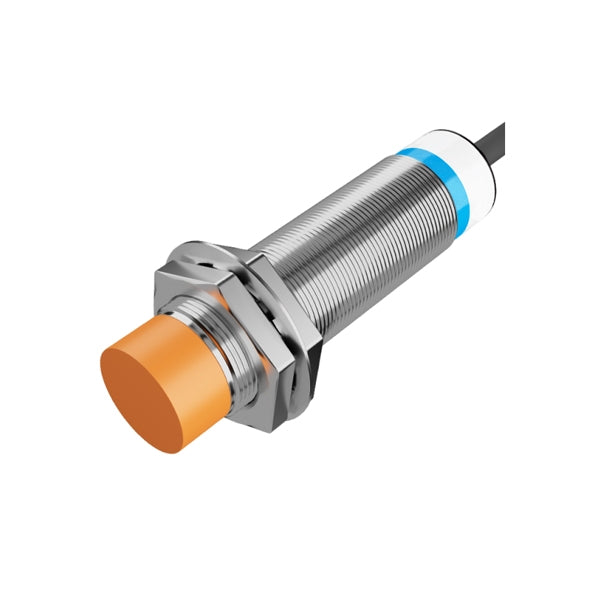

M18 Inductive Proximity Sensor, 8mm Detection, NPN/PNP NO, DC 3-Wire, Unshielded Metal Sensing Switch

M18 Inductive Proximity Sensor, 8mm Detection, NPN/PNP NO, DC 3-Wire, Unshielded Metal Sensing Switch

$39.00 USD
$39.00 USD
Sale Sold out
Shipping calculated at checkout.

● M18*1 thread

● 3 Wire/NPN/PNP output modes

● Unshielded installation type

● Direct connection with PLC
View full details

Overview

engineered for precision metal detection in demanding environments. Featuring an unshielded (non-flush) design, it delivers an extended 8mm sensing range for maximum sensitivity. With a robust DC 3-wire configuration and IP67-rated protection, this sensor ensures seamless integration and stable operation across diverse automated systems.

Feature

Intelligent Metal Detection: Equipped with an advanced sensing chip, it offers rapid response times and superior anti-interference performance, ensuring pinpoint accuracy for metallic targets.

Precision Control Logic: Available in 4 specialized configurations (NPN NO/NC and PNP NO/NC), this DC 3-wire switch supports high switching frequencies and exceptional repeat positioning accuracy.

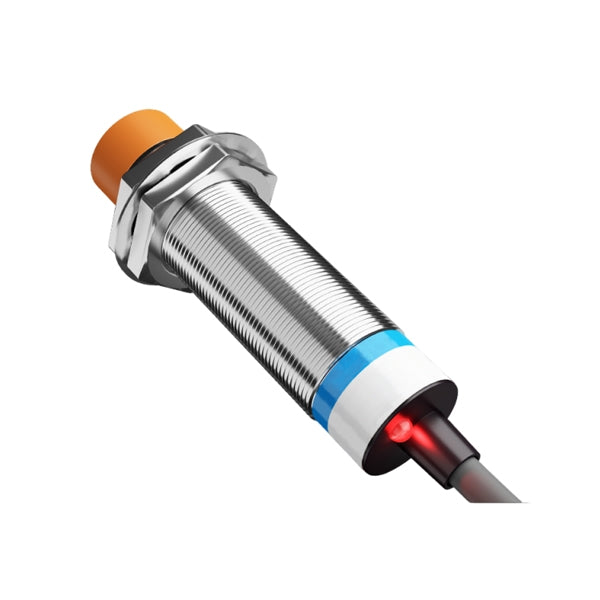

Real-Time Status Monitoring: Features a high-luminance Red LED indicator for instant operational feedback, significantly simplifying on-site debugging and system diagnostics.

Built for Harsh Conditions: The IP67 waterproof and oil-resistant nickel-plated brass housing provides vibration and dust resistance, maintaining stable performance in extreme industrial settings.

System-Safe Integration: Designed for direct PLC connection, it includes built-in reverse polarity and short-circuit protection, serving as a maintenance-free, solid-state alternative to traditional mechanical limit switches.

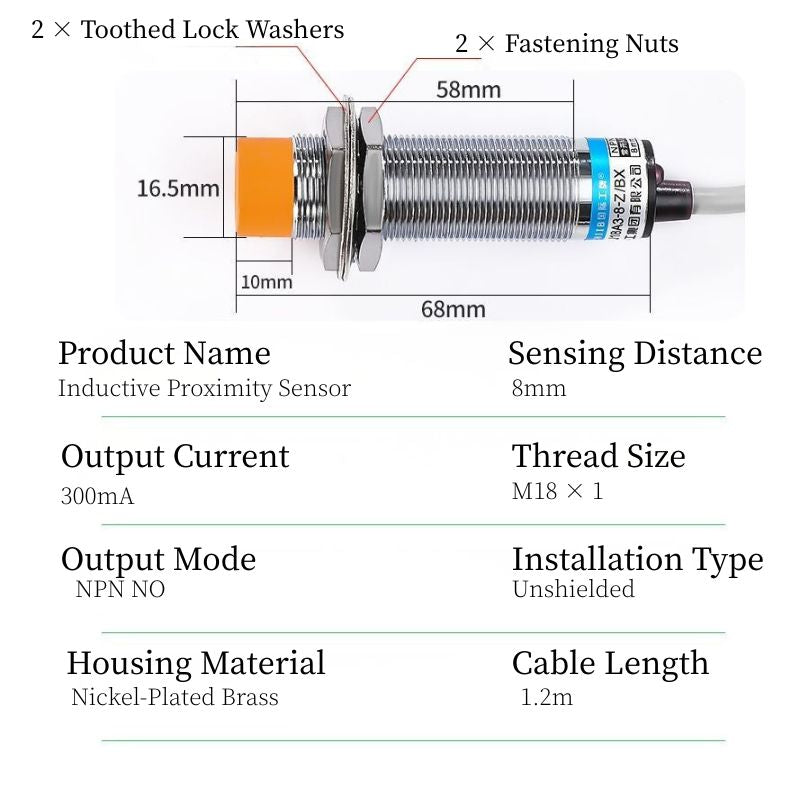

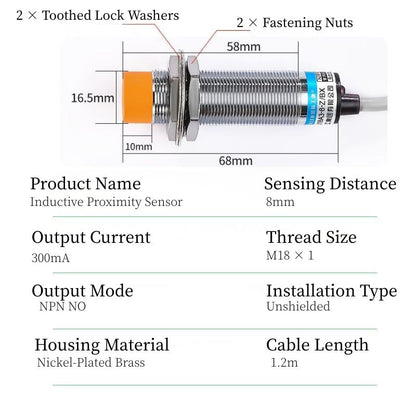

Technical Specifications
Installation Unshielded (Non-flush)
Output Type DC 3-Wire (NPN/PNP Optional)
Output Logic NO / NC (Normally Open / Normally Closed)
Detection Range 8mm ±10%
Setting Distance 0 – 7mm
Standard Target Iron 18×18×1mm
Detection Object Magnetic metal (Sensing distance decreases for non-magnetic metals)
Response Frequency DC
Supply Voltage DC 12-24V (Operating range
Control Output ≤ 300mA
Current Consumption ≤ 13mA
Circuit Protection Reversal connection, surge absorption, load short-circuit protection
Protection Class IP67 (Waterproof, Dustproof, Oil-resistant)
Housing Material Nickel-plated brass
Sensing Surface High-strength ABS
Operating Temp -30°C to +65°C (Non-freezing)
Ambient Humidity 35–95% RH
Insulation Impedance ≥50MΩ (DC500 megameter)

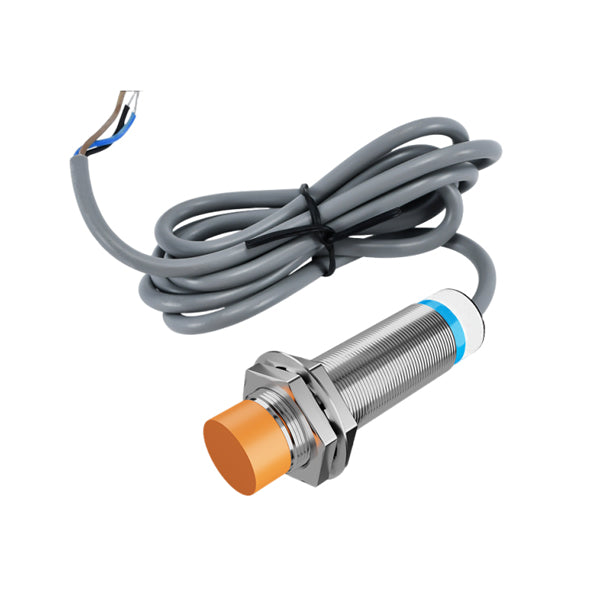

Cable Length 1.2m Industrial Lead

Product FAQ

What is the detection range of the M18 sensor, and how does it compare to M12 models? +
The M18 inductive sensor offers a significantly larger sensing envelope, with a nominal distance of 8mm for unshielded (non-flush) models. This is double the range of standard M12 models (typically 4mm), making the M18 ideal for applications with larger mechanical tolerances or where a greater safety gap is required between the sensor and the moving target.
Is the output logic (NO/NC) switchable on this 3-wire M18 sensor? +
For maximum circuit stability and simplicity, our M18 series features fixed output logic. We provide four dedicated SKU options: NPN NO, NPN NC, PNP NO, and PNP NC. Please select the specific logic required for your PLC or control system at the time of purchase to ensure "plug-and-play" compatibility without the need for manual configuration.
How does ambient temperature affect the sensing accuracy of this switch? +
Our sensors are engineered for thermal stability across industrial environments. Within the standard operating range of -25°C to +60°C, the detection distance fluctuation is maintained within ±10% (referenced at +23°C). For extreme conditions from -30°C to +65°C, the maximum variance remains under ±15%, ensuring consistent triggering and reliable position feedback year-round.
