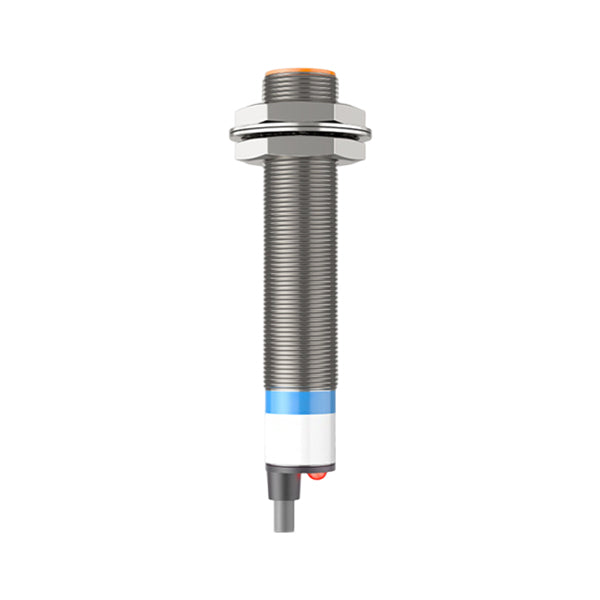

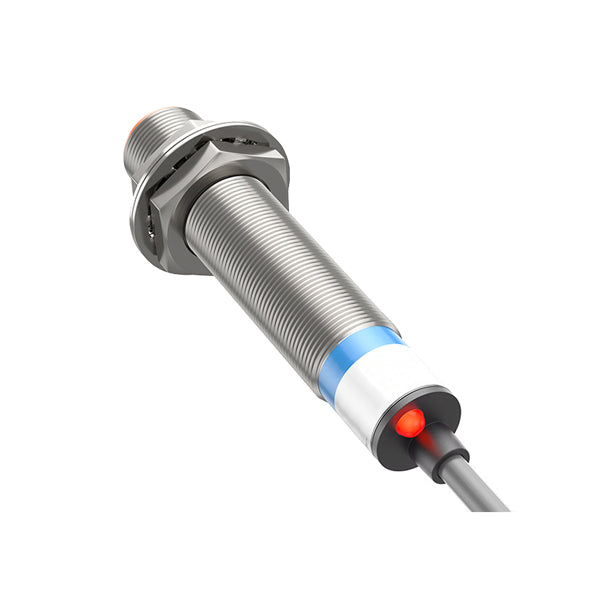

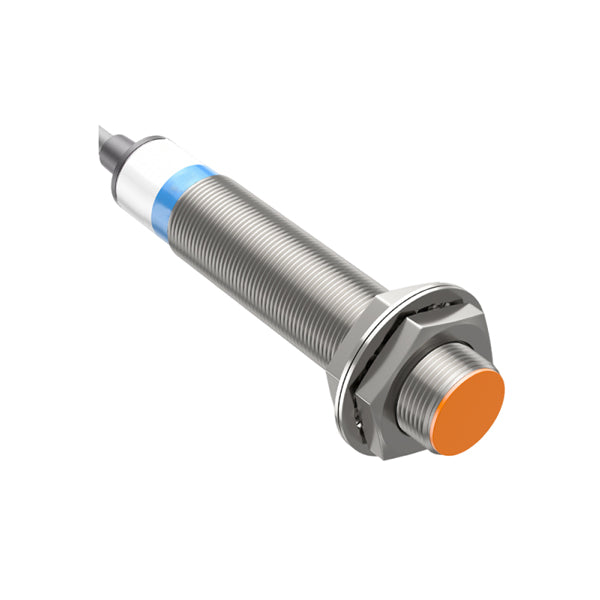

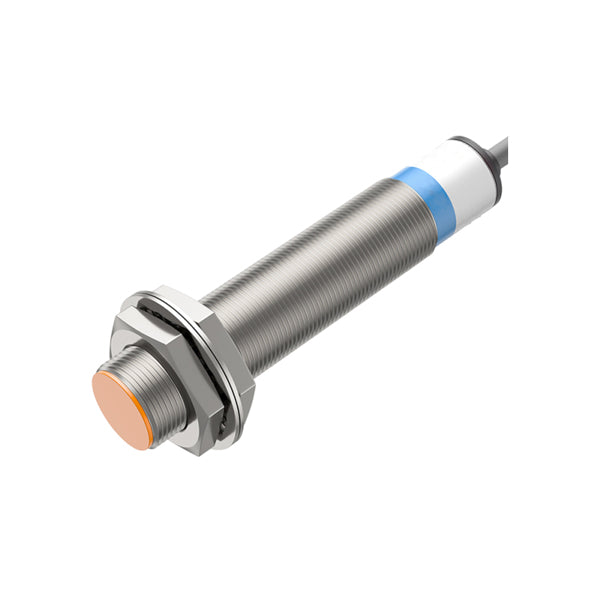

M12 Inductive Proximity Sensor, 2mm Sensing (Shielded), 3-Wire DC 6-36V (NPN/PNP NO/NC)

M12 Inductive Proximity Sensor, 2mm Sensing (Shielded), 3-Wire DC 6-36V (NPN/PNP NO/NC)

$36.00 USD
$36.00 USD
Sale Sold out
Shipping calculated at checkout.

Industrial Standard M12: Fully compatible with CNC machines and automation equipment.
3-Wire DC Logic: Provides a stable, low-noise signal (NPN/PNP) for reliable PLC communication.
High Load Capacity: Supports up to 300mA control output, outperforming standard 2-wire models.
Fully Protected (IP67): Nickel-plated brass housing is shockproof, dustproof, and oil-proof.
View full details

Overview

Optimize your industrial automation with our high-precision M12 series inductive proximity sensors. Engineered for maximum stability and durability, these sensors feature a rugged nickel-plated brass housing and an ABS sensing face, ensuring reliable metal detection in demanding environments.

Feature

3-Wire DC Logic: Provides a stable, low-noise signal. Fully compatible with NPN and PNP PLC systems, supporting a high control output of up to 300mA.

Precision Mounting: Shielded (Flush) design for a stable 2mm sensing range, allowing for seamless integration into tight mechanical structures without mutual interference.

Superior Protection (IP67): Fully sealed construction—waterproof, dustproof, and oil-resistant—maintaining peak performance in harsh factory conditions.

Rapid Response: High switching frequency (up to 2kHz) for precise high-speed counting, limit sensing, and motion control.

Built-in Loop Protection: Integrated reversal connection protection and short-circuit protection to ensure long-term operational safety.

Technical Specifications
Installation Shielded (Flush)
Sensing Distance 2mm ± 10%
Setting Distance 0 – 1.6mm
Output Method 3-Wire DC (NPN/PNP NO/NC selectable)
Supply Voltage 12-24V DC (Range
Control Output Max 300mA
Response Frequency DC
Protection Class IP67
Housing Material Nickel-Plated Brass
Sensing Face Material ABS
Cable Length 1.2m
Loop Protection Reverse polarity, Surge absorption, Short-circuit protection

Product FAQ

What is the benefit of this 3-wire M12 sensor over 2-wire versions? +
The 3-wire design offers a much cleaner signal with zero leakage current, preventing accidental triggers in sensitive PLCs. It also handles a higher load current (300mA) and includes built-in short-circuit protection for added durability.
Can I use this M12 sensor on my 24V PLC system? +
Yes. The 6-36V DC wide-range power supply is perfectly suited for 12V and 24V industrial systems. Simply choose NPN or PNP to match your PLC's input logic.
